Ferrule сыра молока насос винта 1 дюйма санитарный с вагонеткой

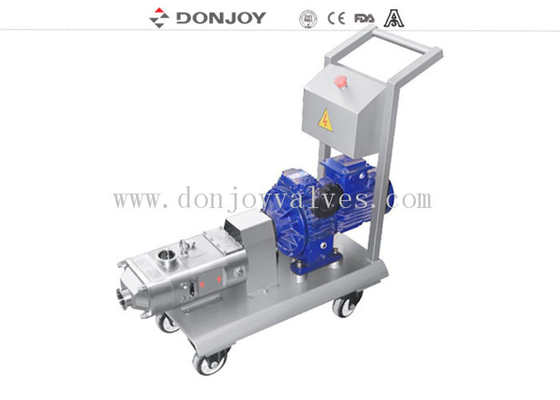

Screw pump with trolley and console for cream, Milk cheese and whey transfer with 1inch Ferrule inlet&outlet

Applications

Twin screw pump has strong self priming ablity, can transport solid particles, gas liquid mixture, high viscosity, low viscosity and other materials. The pump not only can extract and convey materials, but also apply for CIP and SIP systems, can reduce pipeline, valve and CIP exclusive pumps, which improve efficiency and save cost, It has extra characteristics, that other volume pump do not have, such as no pulse phenomenon, no particle damage, high pressure, wide speed range, large flow range and so on.
And used for complex working condition or material transportation and extraction with high-efficiency self-priming ability and transportable solid particles,gas-liquid mixture,high viscosity,low viscosity,etc.

Specifications

Twin Screw pump mechanical seal Design

1. Single mechanical  seal

2.Double mechanical seal

Materials : SIC/SIC/EPD, SIC/C/FKM, SIC/C/HNBR ,SIC/SIC/EPDM, SIC/SIC/FKM, SIC/SICHNBR, TC/TC/EPDM, TC/TC/FKM, TC/TC/ HNBR


Twin screw pump for CIP Cleaning and media delivery configuration

With its strong self priming capacity , the LG series screw pump have the alibity to deliver high viscosity and low viscosity medium, as well as cip liuqid extraction and cleaning functions. Choosing LG Serices screw pump will help you to reduce using cip dedicated pump and valve control system, it will save cost .

Design
1. material transportation and extraction
2. apply for CIP and SIP systems
3. no pulse phenomenon, no particle damage
4. high pressure, speed range, larage flow range and so on

Flexible soluction for two Direction reversible, High pressure, High Viscosity, Large Particle, Pulse free, Liquid Delivery.

Choose the right screw spacing for your process

Option 1: Large screw spacing, large flow rate, Can deliver larger particles, But the pressure will be lower compared with samll spacing screw

Option 2: Samll Screw spacing, lower flow rate but higher pressure, the particles that can be transported will also be smaller.

 Conbination of Twin screw PUMP

1 LG-R screw pump  (Inlet&outlet vertical with level)

2.LG-L Screw pump  (Inlet&outlet horizontal with level)

3.Screw pump + heating jacket

4. Variable frequency motor helical gear screw pump

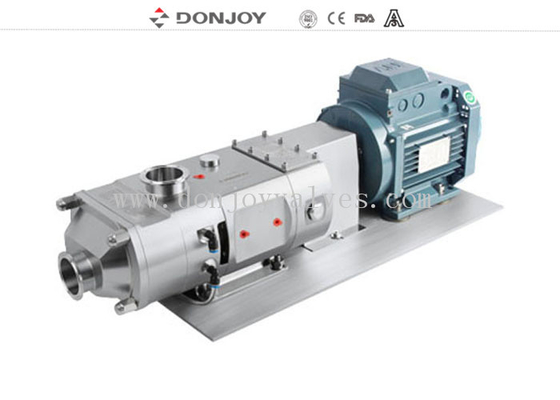

5.Motor direct-connected screw pump

6.Screw pump with whole cover

7.Screw pump with whole cover

8.Screw pump with material mixing connector

9.Screw pump with external safety system

10.Screw pump with flanged hopper

11.Mechanical stepless speed regulating screw pump

12. Screw pump with trolley and console

13. servo motor speed reducing output screw pump

Features

1.Pressure up to 300ps (20bar)

2.Special screw lock nut designed to extend service lift

3.There are no bearing and screws at the area contacting with medium

4.Large Diameter 17-4PH shaft for higher strength and stiffness. Helping to reducing vibration and extend seal lift

5.High precision heavy duty needle roller bearings.

6.Oil-lubricated bearings can be forwarder lubrication over the entire speed, temperature and pressure ranges

Selection table


Pump Inlet/Outlet connection Stadanrd

Connection :  Clamp, Thread, Aseptic Flange, Nut Type, Flange Hopper

Standard :  DIN11851, DN11864, SMS,ISO,IDF, RJT, Flange,...

And if you need more,please contact us .

Dimension Data Chart

More detail please contact us.!!!!
